Specification:

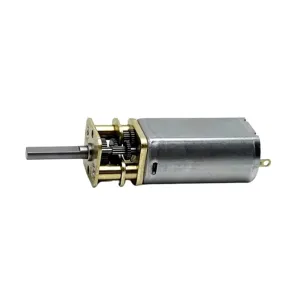

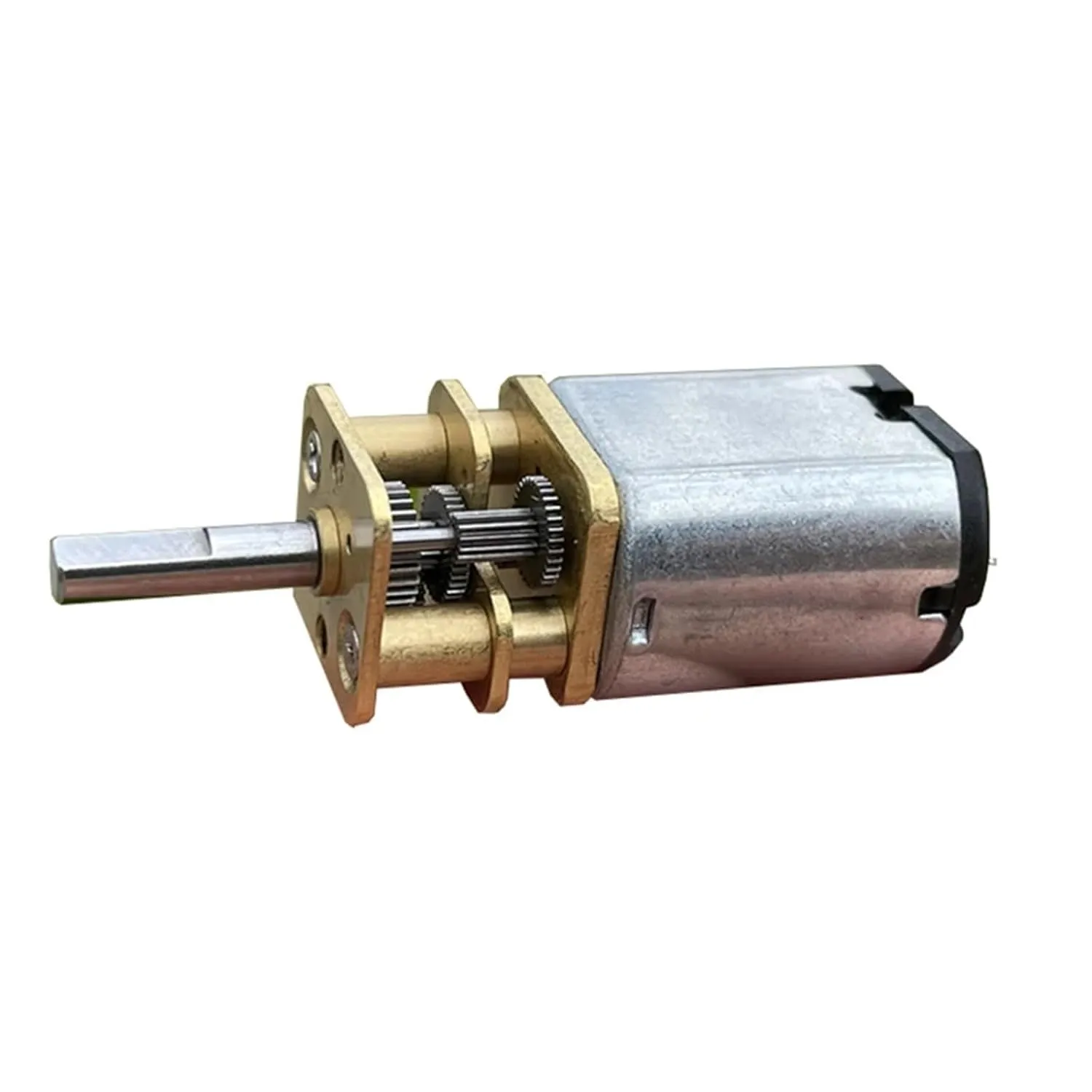

1.Model: 13GM-030 Gear Motor
2.Motor size: 15.4mm*11.8mm*18.6mm
3.Gearbox size: 13mm*12mm*11mm
4.Output shaft diameter: 3mm(D shaft 2.5mm)
5.Output shaft length: 12mm
6.Weight: 18g
7.Voltage range: 3.0V-12.0V
8.Test data:
Voltage:3.0V No-load speed:70RPM Current:17mA
Voltage:5.0V No-load speed:120RPM Current:22mA
Voltage:7.4V No-load speed:180RPM Current:28mA
Voltage:12V No-load speed:280RPM Current:42mA
Package List:
Gear Motor x 1pc
==========
Hign-concerned Chemical : None
Model Number : 13GM-030 Gear Motor
Construction : Permanent Magnet
Protect Feature : Explosion-proof
Type : Gear Motor
Commutation : Brush
Efficiency : IE 1
Use : Home Appliance
Reversible/Non-Reversible : Reversible
Shaft Diameter : 3mm(D shaft 2.5mm)
Actual Rated Input Voltage : 3V-12V
Base RPM : 70RPM-280RPM
Special Motor Construction : Explosion-Proof Motor
Output shaft length : 12mm

• Package Dimensions ‏ : ‎ 11.81 x 7.87 x 3.94 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ June 14, 2025
• Manufacturer ‏ : ‎ NUJDCNO
• Country of Origin ‏ : ‎ China
