Motors
Specification:

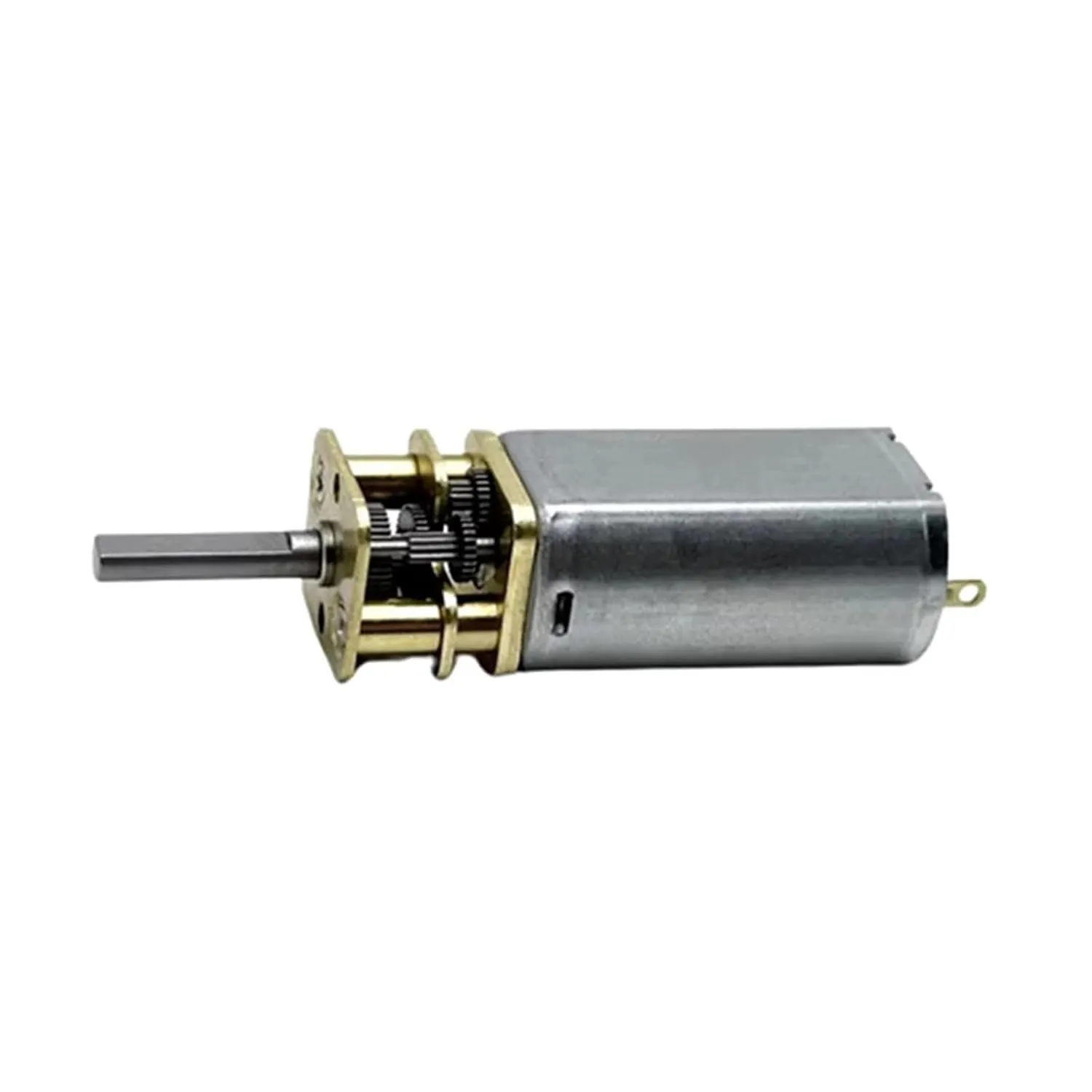

1.Model: 13F-050 Gear Motor
2.Motor size: 26.8mm*15.4mm*11.8mm
3.Gearbox size: 13mm*12mm*11mm
4.Output shaft diameter: 3mm (D shaft 2.5mm)
5.Output shaft length: 14mm
6.Weight: 25g
7.Rated voltage: 9.0V
8.Suitable voltage: 3.0V-9.0V
9.Test data:
Voltage:3.0V Current:120mA No-load speed:80RPM
Voltage:3.7V Current:128mA No-load speed:100RPM
Voltage:6.0V Current:135mA No-load speed:165RPM
Voltage:9.0V Current:170mA No-load speed:245RPM
=========================
Package List:
Gear Motor x 1PC
==========
Hign-concerned Chemical : None
Model Number : Mini 050 Gear Motor
Construction : Permanent Magnet
Protect Feature : Explosion-proof
Type : Gear Motor
Commutation : Brush
Efficiency : IE 1
Use : Home Appliance
Model : 13F-050 Gear Motor
Suitable voltage : 3V-9V
Speed range : 80RPM-245RPM
Output shaft diameter : 3mm (D shaft 2.5mm)
Weight : 25g

• Package Dimensions ‏ : ‎ 11.81 x 7.87 x 3.94 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ June 14, 2025
• Manufacturer ‏ : ‎ IYEYVDKJ
• Country of Origin ‏ : ‎ China
