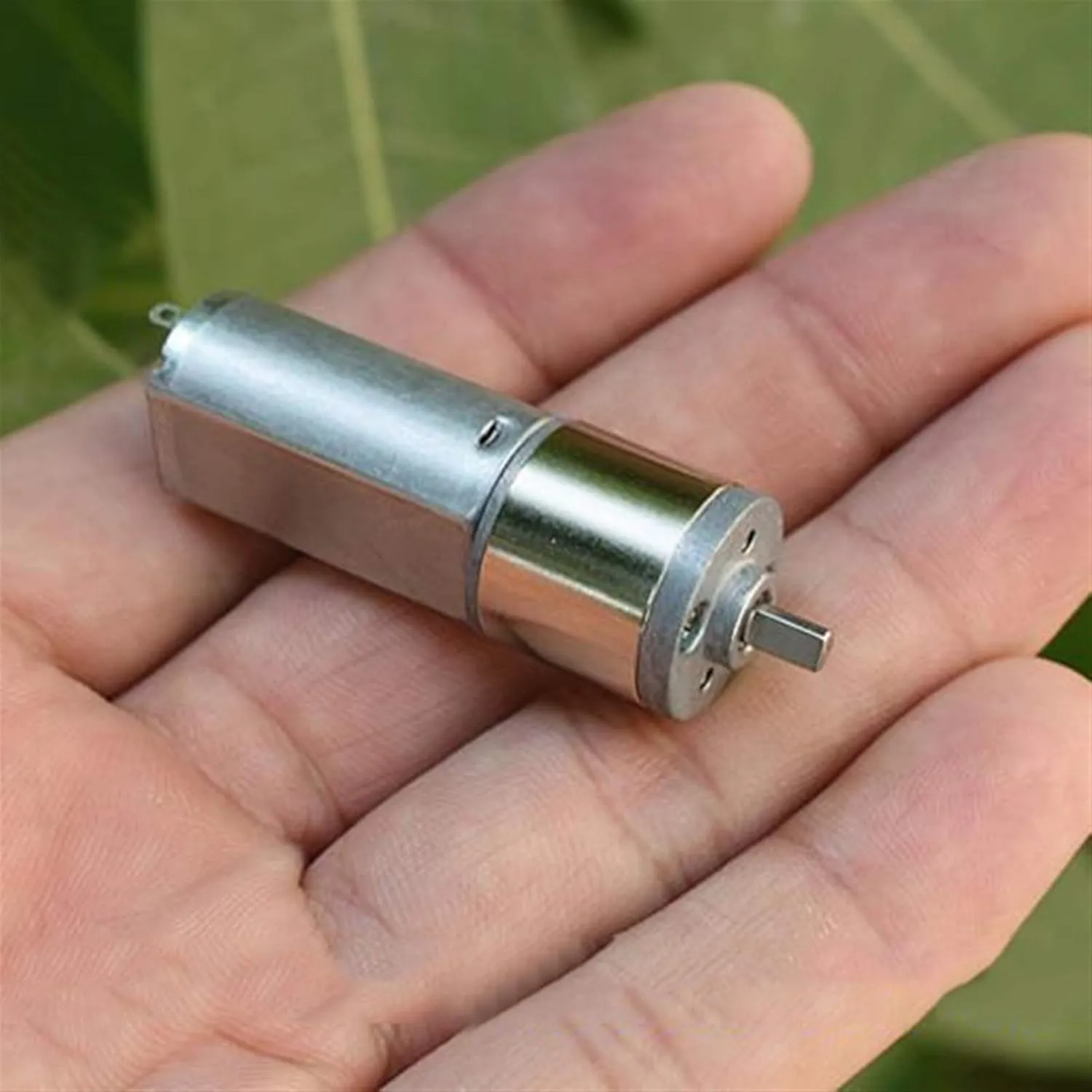

- Model: ZGA16R-050 Gear Motor, DC 3V-6V 5V 58RPM
- Gearbox diameter: 16mm
- Total height: 42.3mm(Motor Gearbox)
- High temperature resistance, high wear resistance, strong carrying capacity, strong and durable.
- Used in a variety of small equipment and experimental equipment, with a wide range of applications
1.Model: ZGA16R-050 Gear Motor
2.Gearbox diameter: 16mm
3.Total height: 42.3mm(Motor Gearbox)
4.Output shaft diameter: 3mm(flat shaft 1.9mm)
5.Output shaft length: 6.5mm
6.Gear ratio: 1:210
7.Weight: 30g
8.Voltage range: DC 3V-6V
9.Test data:
Voltage:3V Current:75mA Speed:35RPM
Voltage:5V Current:83mA Speed:58RPM
Voltage:6V Current:90mA Speed:70RPM
