- Factory set at 100°F
- Adjustable temperature output between 86–120°F
- Same extremely compact design as mechanical Mini
- Pre-wired pigtail included
- Major energy savings
- Unlimited supply of hot water
- Proven reliability

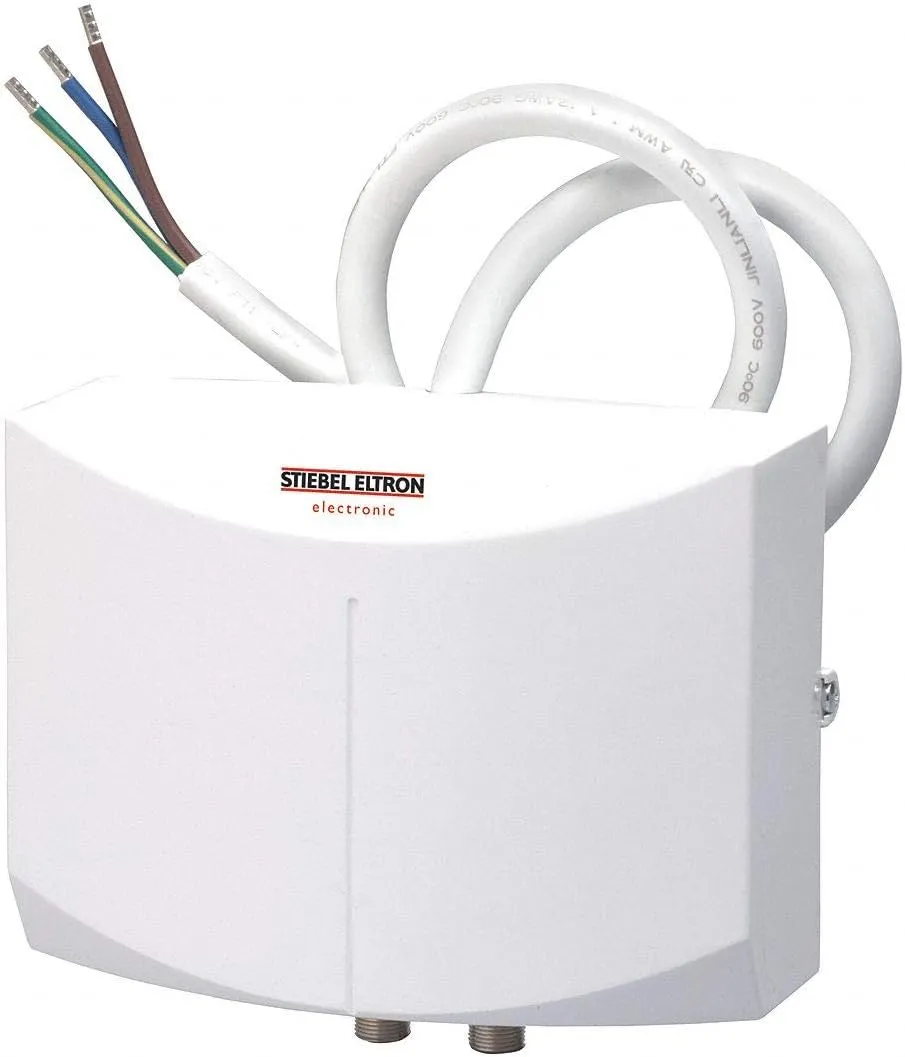

Stiebel Eltron 236135 Model Mini-E 2.5-1 Thermostatic Handwashing Sink Electric Tankless Water Heater 2.4kW, Code-compliant Thermostatic Control, Pre-wired Pigtail Included
Key Features:
- Code-compliant thermostatic control
- Factory set at 100°F
- Adjustable temperature output between 86–120°F
- Same extremely compact design as mechanical Mini
- Pre-wired pigtail included
- Major energy savings
- Unlimited supply of hot water
- Proven reliability
- Sleek design is appealing and can be mounted in plain sight
- Can be mounted with fittings pointing up or down
- Mini-E models are suitable for booster applications, accepting a maximum incoming water temperature of 122 °F (50 °C)
Specifications:
- Phase - 50/60 Hz: 1
- Voltage: 120 V
- Wattage: 2.4 kW
- Amperage draw (Min. recommended, copper): 12/2 AWG
- Water volume in unit: 0.026 gal (0.1 l)
- Minimum pressure: 30 psi (2 bar)
- Working pressure: 150 psi (10 bar)
- Tested to pressure: 300 psi (20 bar)
- Weight: 3.44 lb (1.56 kg)
- Dimensions: Width 7½" (19.0 cm) x Height 6½" (16.5 cm) x Depth 3¼" (8.2 cm)
