- Type:Other
- Commutation: Brush
- Type: Micro Motor
- Protect Feature: Totally Enclosed
- Construction: Permanent Magnet
Item Description:
Specification:
Rated voltage: DC 6V

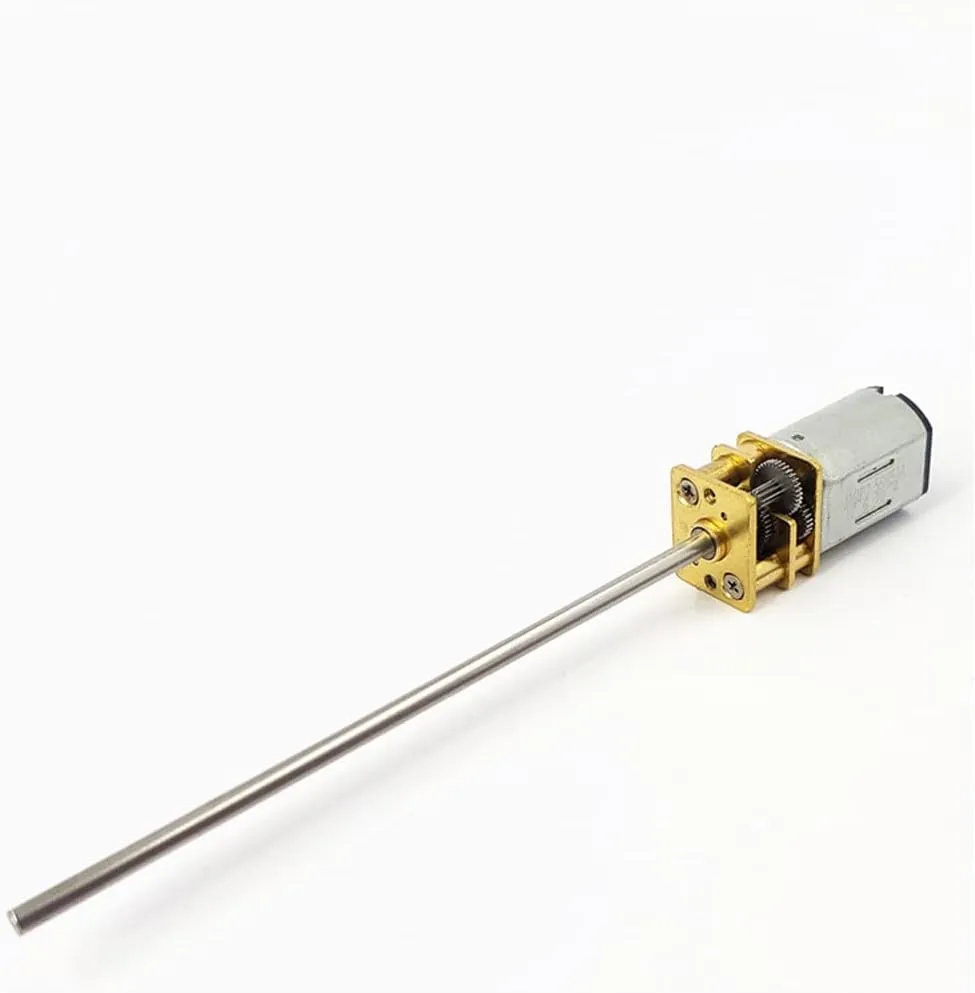

Motor specifications: 10*12*15 MM (N20 motor)
Gear box specification: 10*12 MM
Output shaft diameter: 3MM (with flat position 2.5MM)
Output shaft length: 66.6 MM
Weight: 14.5 g
No-load current: 46MA
Test data:
----------------------
Voltage: DC1.5V No-load current: 25MA No-load speed: 16RPM
----------------------
Voltage: DC3V No-load current: 33MA No-load speed: 33RPM
----------------------
Voltage: DC6V No-load current: 46MA No-load speed: 66RPM
Package Include:
1PCS * DC Motor
Item Specification:
Commutation: Brush
Type: Micro Motor
Protect Feature: Totally Enclosed
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Home Appliance
Usage:model
Efficiency: IE 2
Voltage: DC 6V
Size: 10*12*15 MM
Shaft Length: 66mm
Shaft diameter: 3MM (with flat position 2.5MM)
Speed: 66RPM
