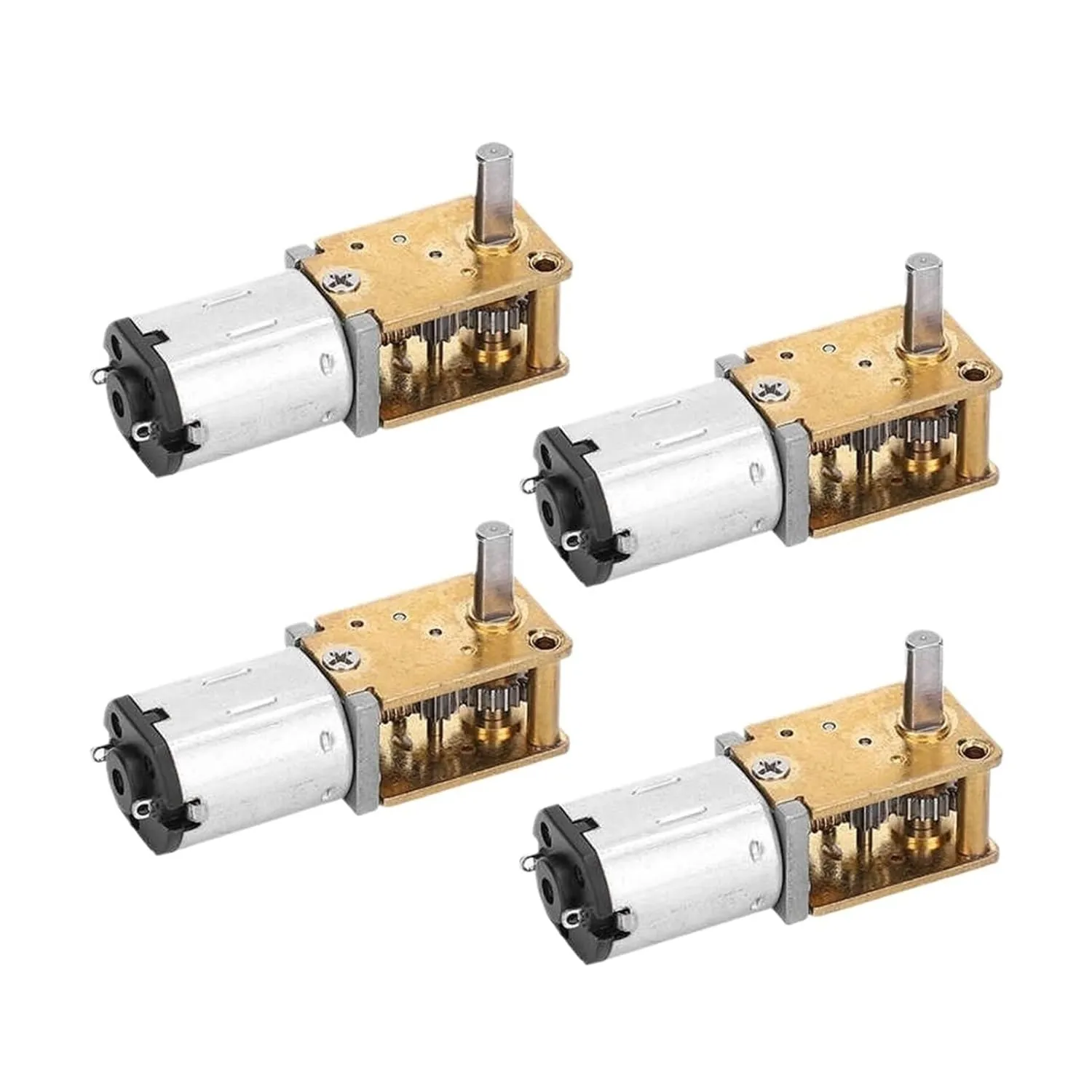

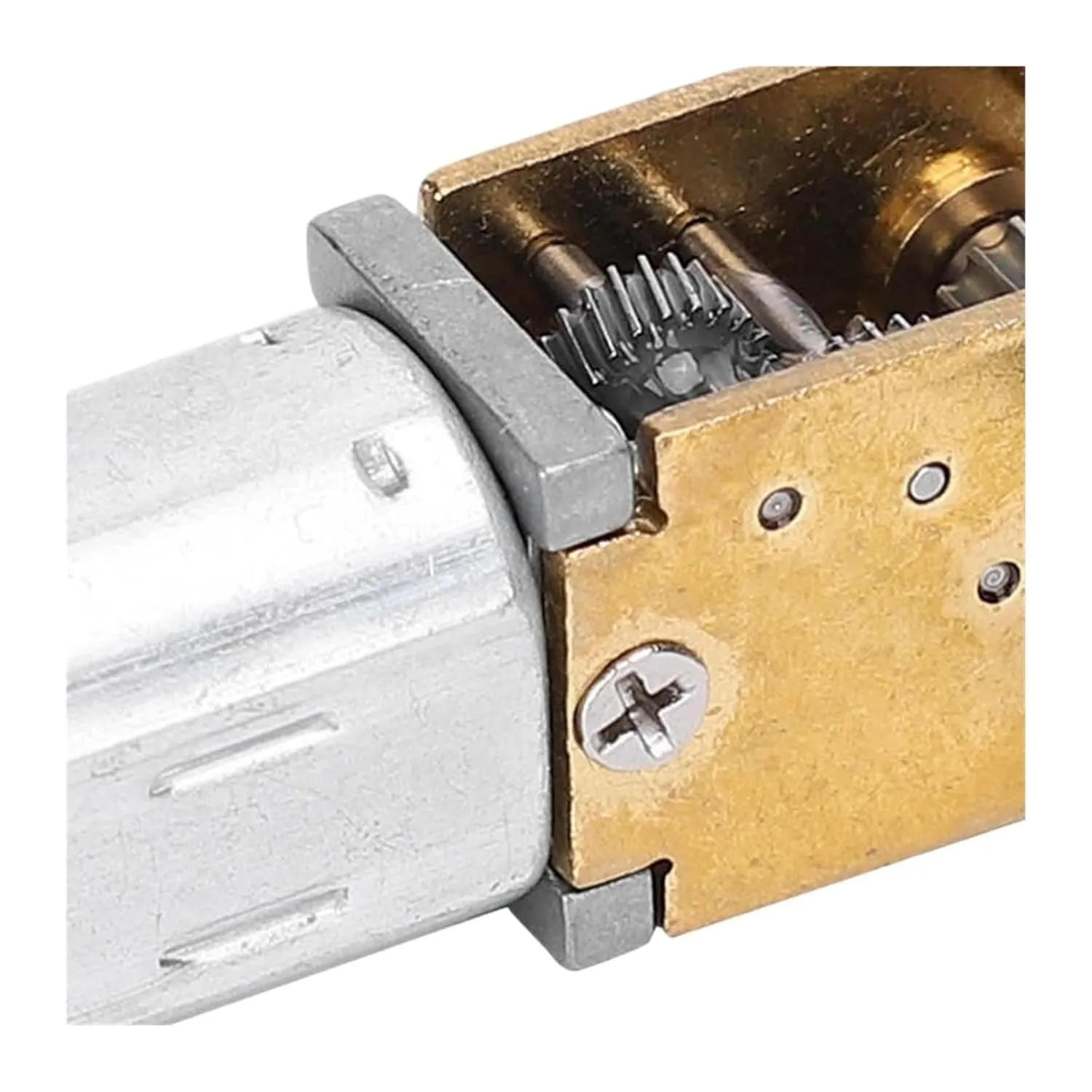

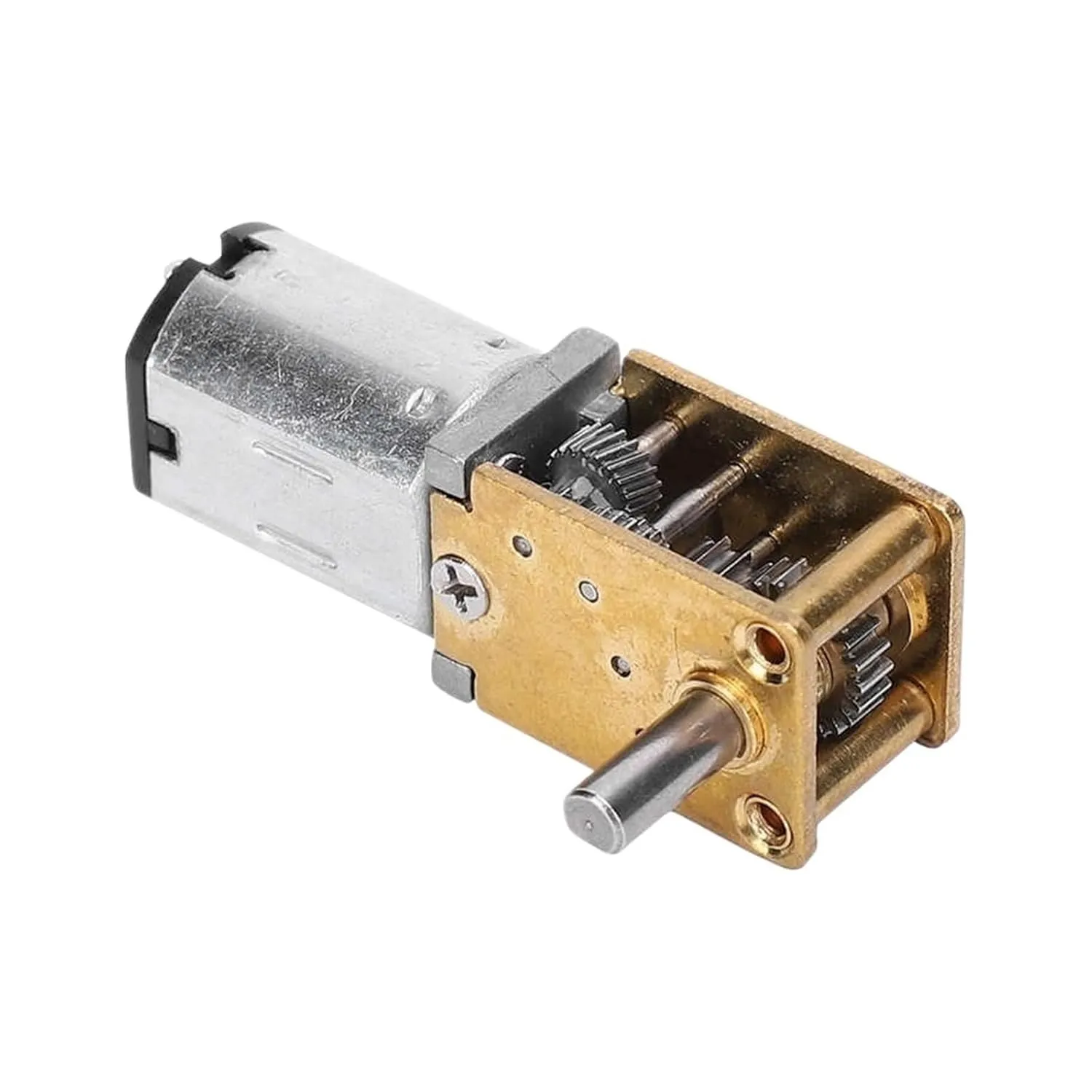

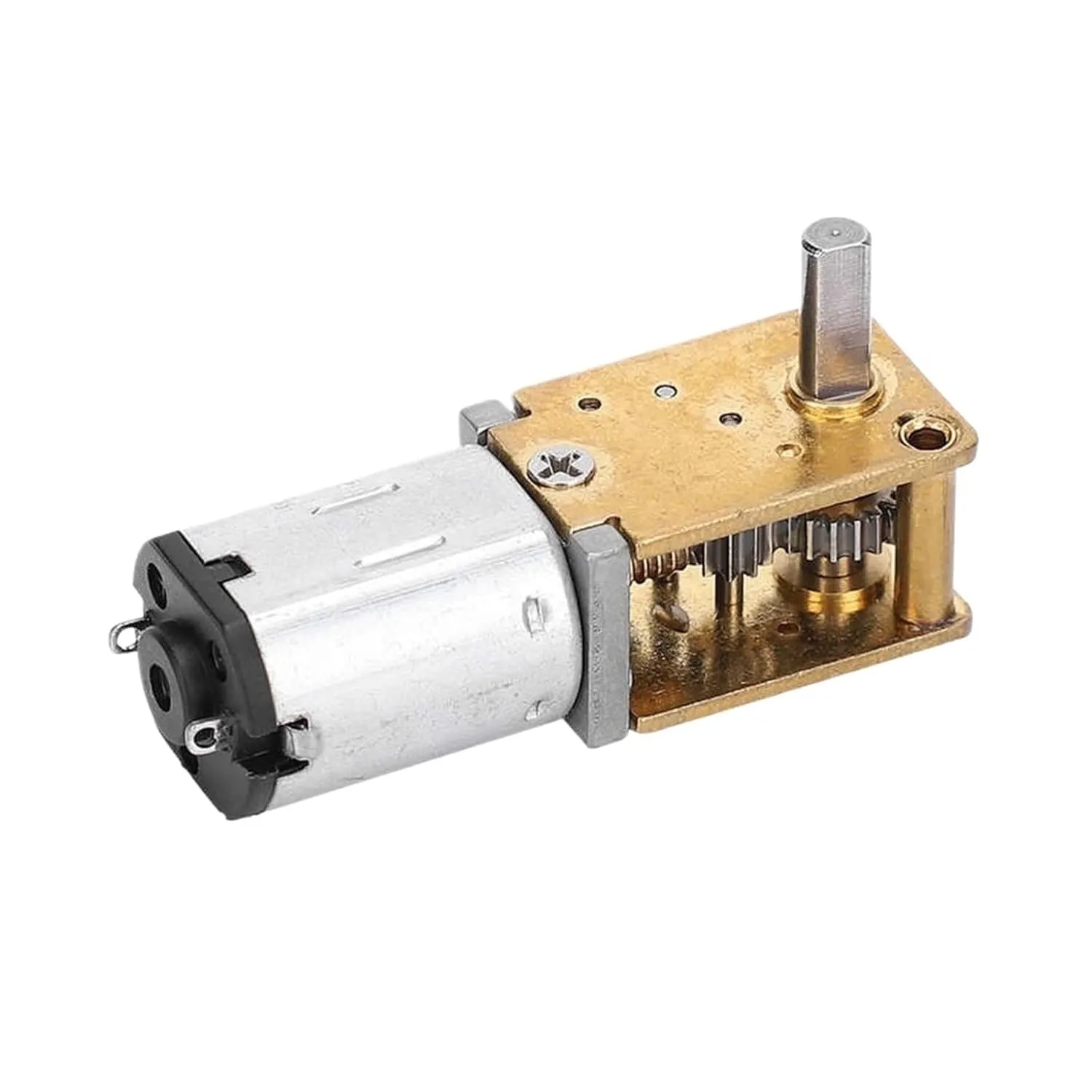

3V 6V Mini Gear Motor Micro 16/30/35/70 RPM Worm Gear Reducer Brush Motors Electronic Devices 1218GEN20 Electric Motor
Feature:
1. Gear transmission is stable, wearresistant, and possess large transmission torsion
2. 3 layers of highdensity molecular paint coating can effectively insulate dust and resistant to high temperature
3. This brush motor have strong motor power output, which is powerful and practical
4. Made of copper, brass and zinc alloy material, sturdy and for a long service life
5. The product is Mainly used for electronic locks, smart car, robots, cameras, etc. Specification:
Item Type: Mini Gear Motor
Material: Copper, brass, zinc alloy
Model: 1218GE-N20
Motor Type: Brush motor
Mainly used in electronic locks, smart car, robots, cameras, etc.
Parameter:
Voltage Reduction ratio No-load Load Block load
Rotate speed Current Rotate speed Current Torsion
Current Torsion
3V 1:236 16RPM 30MA 13RPM 40MA 120g.cm 0.4A 2.6KG.CM
3V 1:236 30RPM 30MA 25RPM 40MA 160g.cm 0.4A 2.2KG.CM
6V 1:236 35RPM 50MA 28RPM 40MA 220g.cm 0.4A 1.5KG.CM
6V 1:236 70RPM 60MA 61RPM 40MA 320g.cm 0.4A 2.2KG.CM
Size:
Approx. 8.5mm / 0.3in
Approx. 4mm / 0.2in
Approx. 8mm / 0.3in
Approx. 10mm / 0.4in
Approx. 7.5mm / 0.3in
Approx. 0.5mm / 0in
Approx. 18mm / 0.7in
Approx. 10mm / 0.4in
Approx. 12mm / 0.5in
Approx. 2.5mm / 0.1in
Approx. 18mm / 0.7in
Approx. 15.1mm / 0.6in
Diameter:
Approx. 3mm / 0.1in
Approx. 4mm / 0.2in
Approx. 12mm / 0.5in
Package List:
1 x Mini Gear Motor Note:
Please allow 0.1mm error due to manual measurement. Thanks for your understanding.

Torque : 2.6KG.CM
Model Number : Mini Gear Motor
Continuous Current(A) : 0.4A
Construction : Other
Type : Gear Motor
Protect Feature : Totally Enclosed
Commutation : Brush
Efficiency : IE 1
Output Power : DC

• Package Dimensions ‏ : ‎ 0.39 x 0.39 x 0.39 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ June 16, 2025
• Manufacturer ‏ : ‎ YCCMSM13
• Country of Origin ‏ : ‎ China
