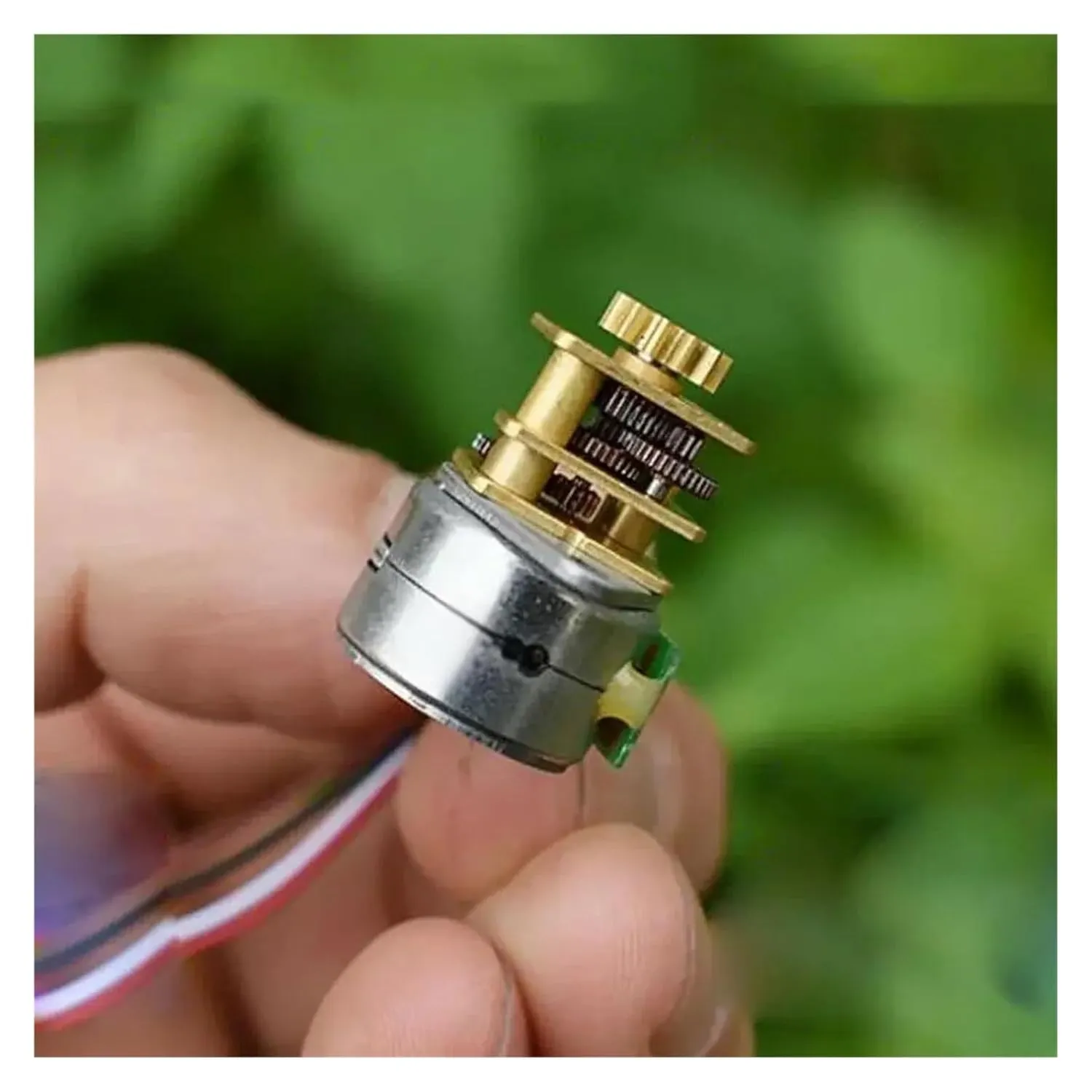

- 1 This 2 Phase 4 Wire Mini 15mm Stepper Gear Motor uses an 18-degree step angle to ensure precise control and smooth rotation, making it for projects such as robots, smart cars, and electronic locks
- 2 Our 15mm stepper motor has an outer diameter of 7mm and is finely manufactured to provide excellent durability and stability, ensuring long-term operation without damage
- 3 This motor supports DC 6V-12V input voltage, providing flexible power options to meet the needs of different devices, so that you can use it in various applications
- 4 The 2 Phase 4 Wire Mini 15mm Stepper Gear Motor is equipped with clear cable identification red for A , white for A-, black for B , and brown for B-, which is convenient and quick to wire, greatly saving installation time
- 5 We provide Gear Motor sets in packs of 3, 5, or 10, which are convenient for customers to choose according to project requirements and suitable for the production of various small electric equipment and toys
Specification:
Motor diameter: 15 MM

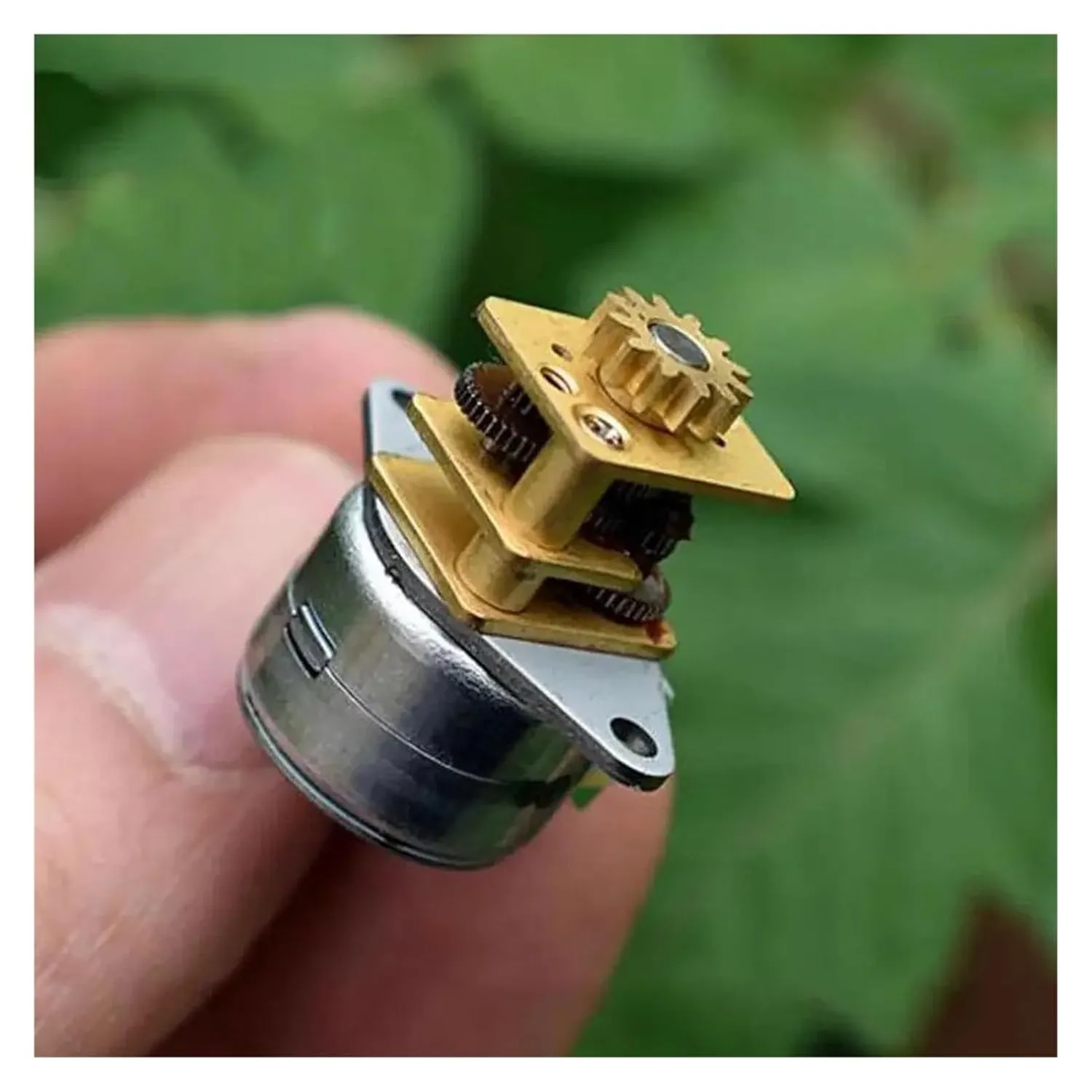

Output gear outer diameter: 7 MM (12 teeth, 0.5 module)
Gearbox reduction ratio: 1: 51.4 (approximately)
(Approximately 1028 pulse,output shafts rotate 360 degrees)
Step angle: The motor is 18 degrees, and the output shaft is about 0.35 degrees.
Stepping motor: two-phase four-wire

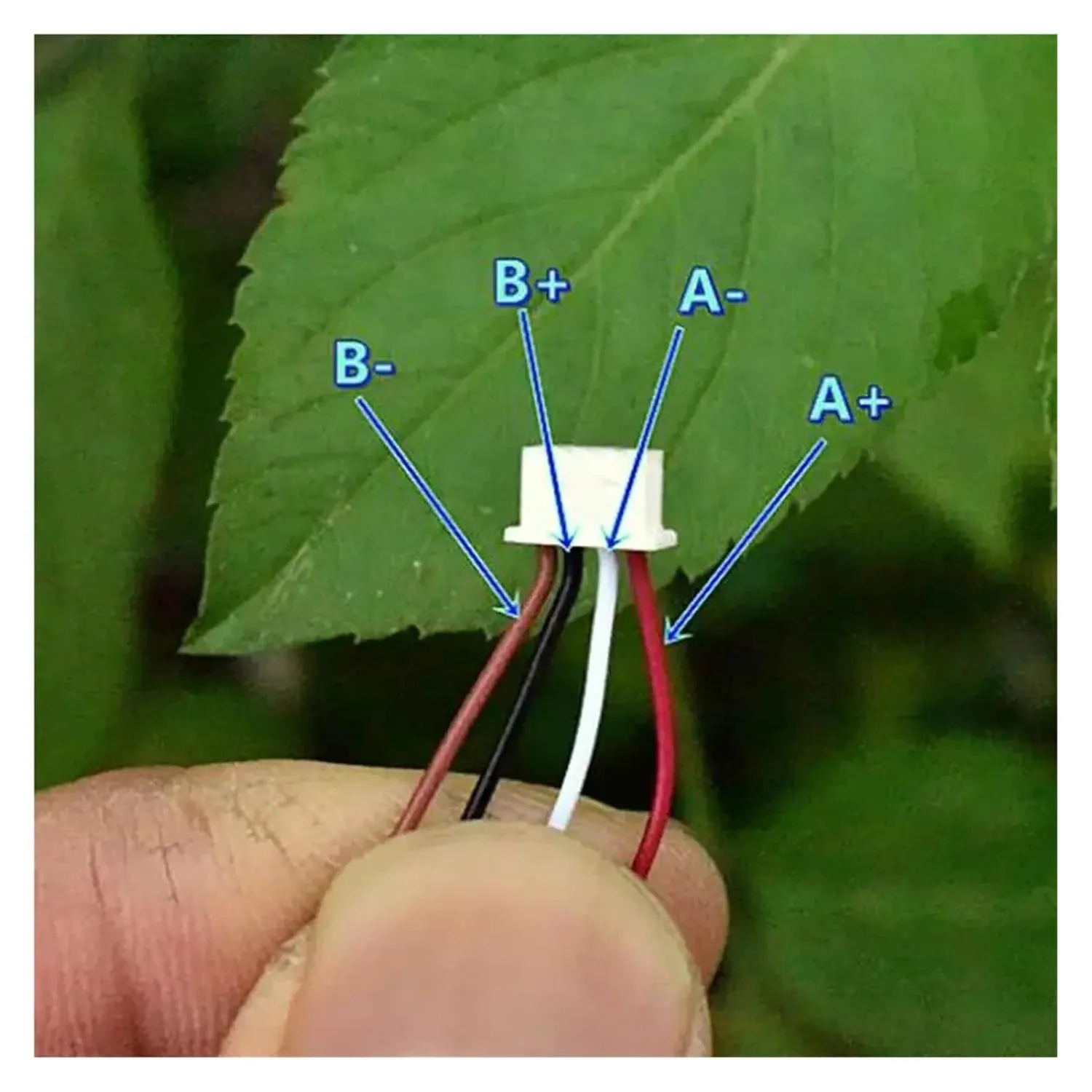

Wire connect: (A : red line, A-: white line. B : black line, B-: brown line)
Phase resistance: 31.3 ohms (6V short-circuit current 0.19 A)
Cable length: 65 MM
Weight: 14 g
Package Include:
3/5/10PCS * Gear Motor
Step Angle(degrees) : 18degree / 150
Phase : 2
Model Number : 15mm Stepper Motor
Reduction ratio:1 : 150
Nominal Rated Input Voltage : 6 V, 9 V, 12 V
ctual Rated Input Voltage : DC 6V-12V
Full Step Angle : 18 Degree
Model : Stepper Gear Motor
Type : 2-phase 4-wire
- Product Dimensions : 1.97 x 1.97 x 1.97 inches; 7.05 ounces
- Department : unisex-adult
- Date First Available : April 22, 2025
- Manufacturer : GUUYKJ
- Country of Origin : China
