Specification:
Note:This motor is 2-phase 4-wire gear stepper motor, it needs the stepper motor driver to drive. Please buyers make sure you know how to use the motor before purchase. Thanks.

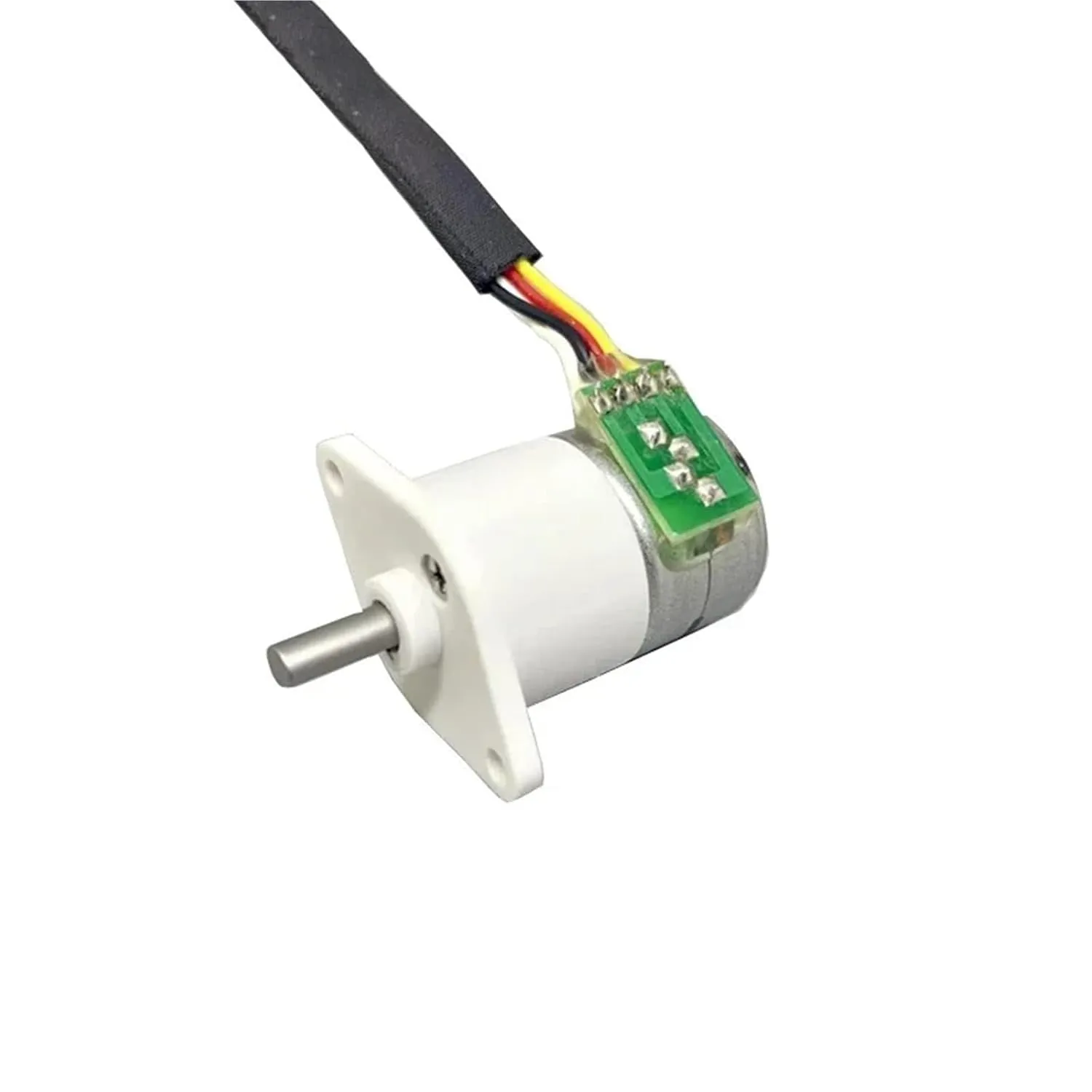

1.Model: GPM15-013A Mini Gear Stepper Motor
2.Motor diameter: 15mm
3.Motor height: 21.4mm
4.Output shaft diameter: 3mm (D shaft 2.5mm)
5.Weight: 17g
6.Cable length: 21cm
7.Rated voltage: 5V
8.Phase resistance: 10 ohms
9.Wiring: 2-Phase 4-Wire (Black White: A A- ; Red Yellow: B B-)
10.Step angle: 18 degree
11.Features: All metal gears, with dust cover, high , low noise, durability, adjustable speed, forward
and reverse rotation, small size, stable and precise.
12.Application: Intelligent robots, intelligent furniture, intelligent focusing systems, miniature pan tilt, etc
=========================
Package List:
Motor x 1PC
==========
Hign-concerned Chemical : None
Model Number : Mini 15MM Gear Stepper Motor
Construction : Permanent Magnet
Protect Feature : Explosion-proof
Type : Micro Motor
Commutation : Brush
Efficiency : IE 1
Use : Home Appliance
Model : GPM15-013A
Motor diameter : 15mm
Output Shaft diameter : 3mm (D shaft 2.5mm)
Motor type : 2-phase 4-wire
Phase resistance : 10 ohms

• Package Dimensions ‏ : ‎ 11.81 x 7.87 x 3.94 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ June 14, 2025
• Manufacturer ‏ : ‎ IYEYVDKJ
• Country of Origin ‏ : ‎ China
